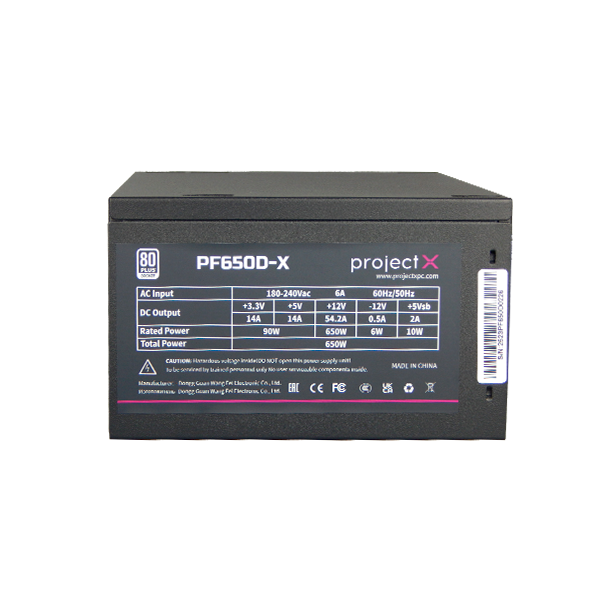

PF650D-X

pf650d-x

Technical specification

Model No. :

PF650D‑X

Type:

ATX12V V2.4

Product Dimensions:

150x140x86 (W x L x H)

Certification:

80 Plus Bronze

Fan Size:

120mm

Fan Bearing:

Hydro Bearing

Topology:

Active PFC+Double tube forward

Capacitors:

Taiwan bulk capacitor

Power Good Signal:

100‑500ms

Hold Up Time:

>16ms(75% Load)

Efficiency:

87%+ efficiency under typical load(50% Loading)

Protection:

OPP/OVP/SCP

Operation Temperature:

0‑40°C

Erp Regulation:

ErP2010

MTBF:

100,000 Hours

Warranty:

1 Year

Main Power Connector (20+4Pin)x1:

1

CPU(4+4)Pin x 2:

1

PCI-E(6+2)Pin x 2:

2

SATA x 3+4Pin Peripheral x 1:

2
